Standard Hydraulic Hoses

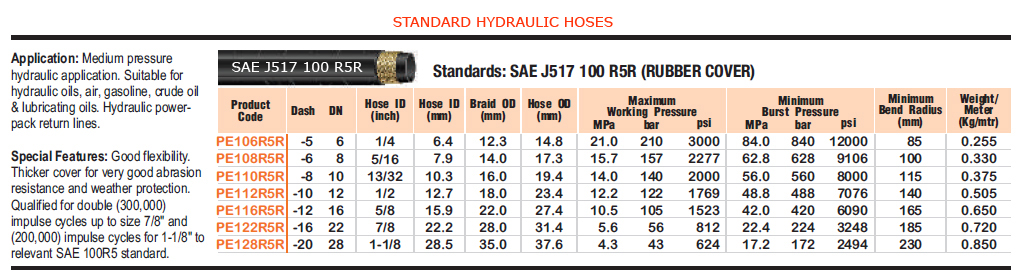

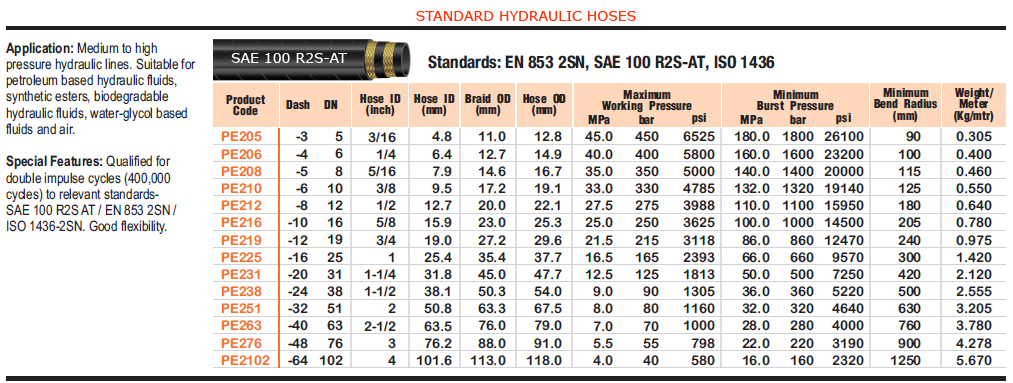

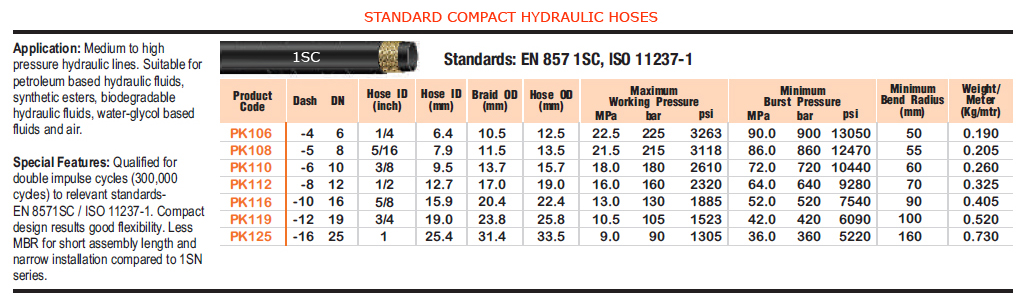

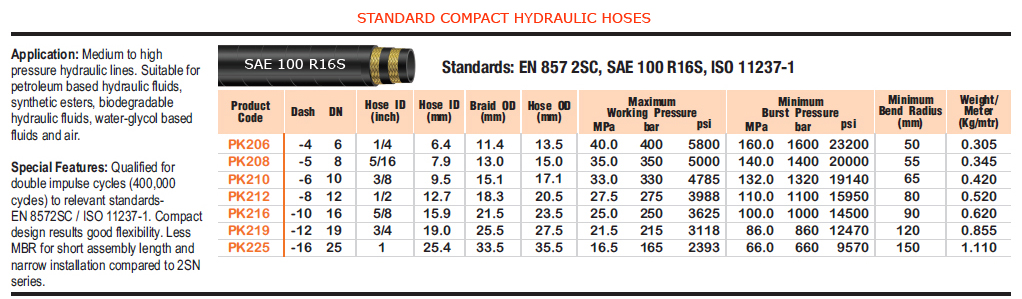

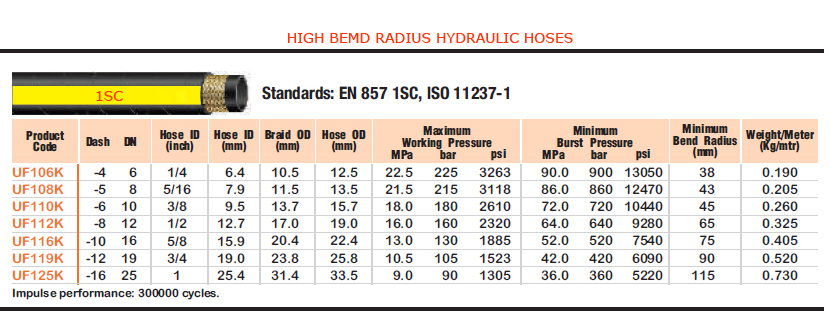

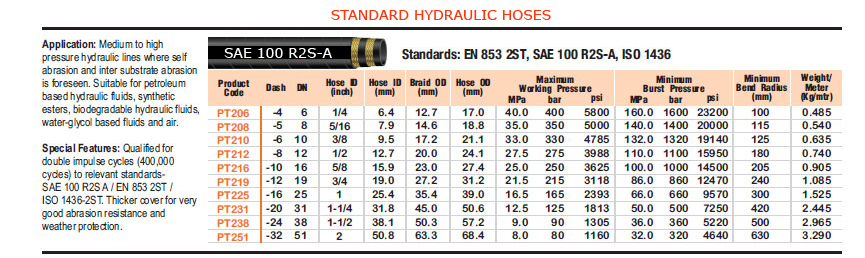

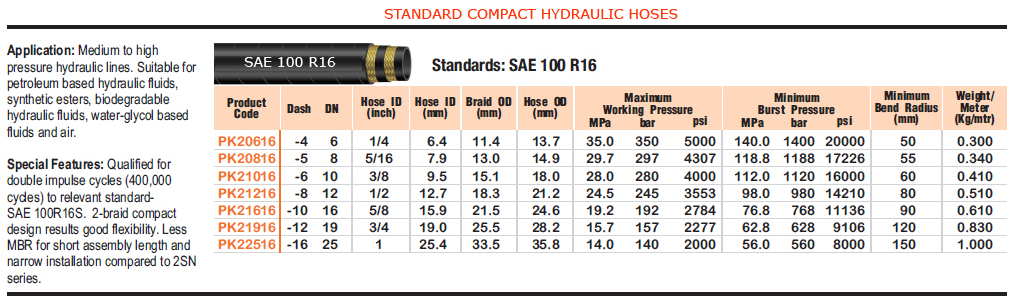

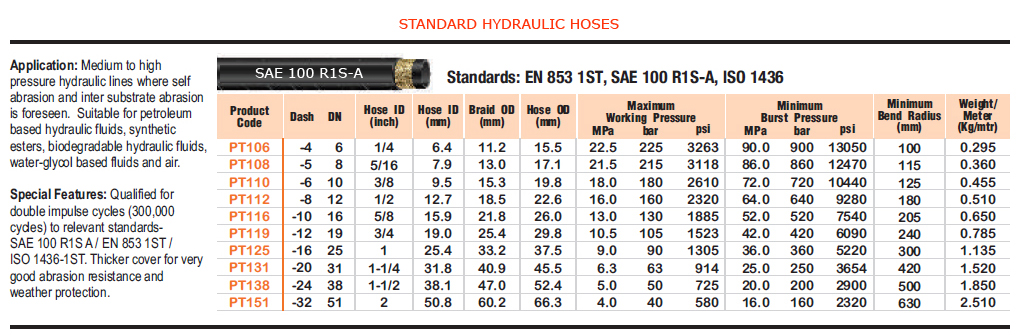

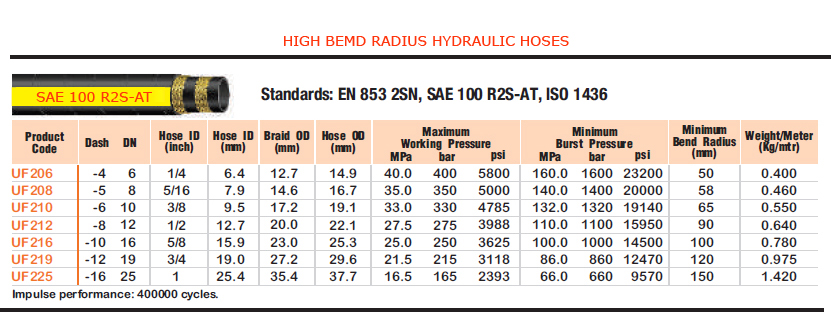

STANDARD HYDRAULIC HOSES STANDARD COMPACT HYDRAULIC HOSES Standard: EN 853 1SN, SAE 100 R1S-AT, ISO 1436 Standard: EN 853 2SN, SAE 100 R2S-AT, ISO 1436 Standard: SAE J517 100 R5R (RUBBER COVER) Standard: EN 853 1ST, SAE 100 R1S-A, ISO 1436 Standard: EN 853 2ST, SAE 100 R2S-A, ISO 1436   Working Temperature : 400C to + 1000C(continuos) Intermittent Temperature : 400C to + 1200C(10% of total working hours) For air application (Temp.max 700C) & pressure above 17 bar cover must be pin pricked. Special MSHA approved flame resistant outer cover can be provided on request. Note : 1MPa = 10 bar = 145 psi Standard: EN 857 1SC, ISO 11237-1 Standard: EN 857 2SC, SAE 100 R16S, ISO 11237-1 Standard: SAE 100 R16   Working Temperature : 400C to + 1000C(continuos) Intermittent Temperature : 400C to + 1200C(10% of total working hours) For air application (Temp.max 700C) & pressure above 17 bar cover must be pin pricked. Special MSHA approved flame resistant outer cover can be provided on request. Note : 1MPa = 10 bar = 145 psi

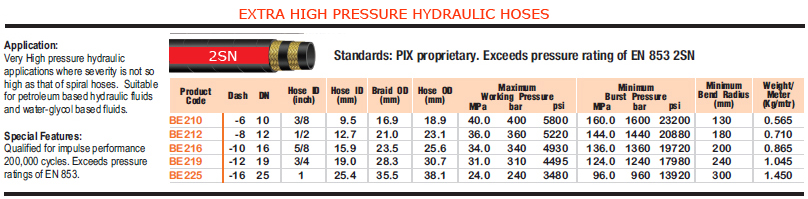

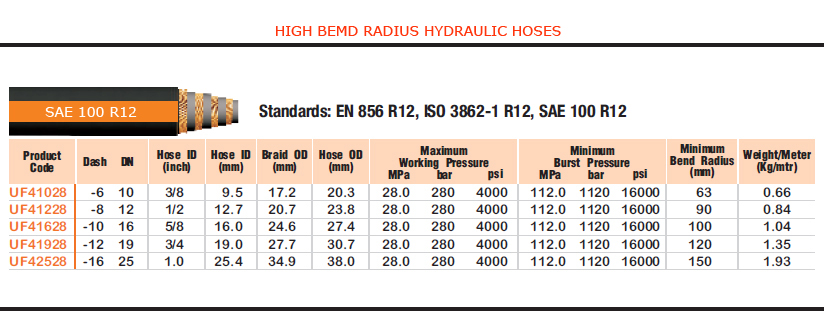

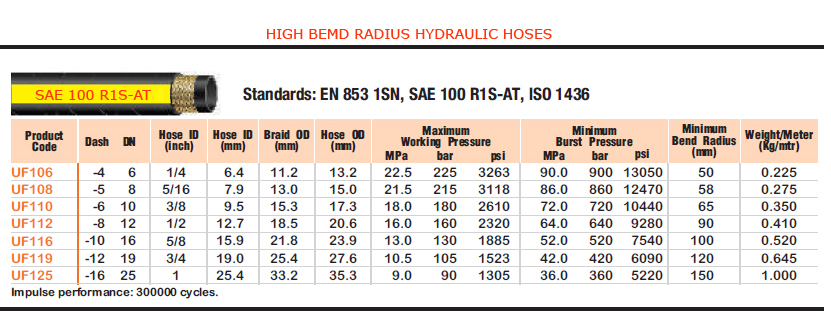

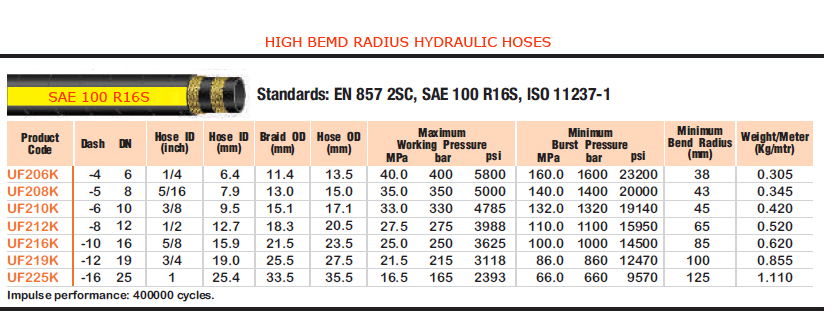

HALF BEND REDIUS HYDRAULIC HOSES EXTRA HIGH PRESSURE COMPACT HYDRAULIC HOSES Standard: EN 853 1SN, SAE 100 R1S-AT, ISO 1436 Standard: EN 853 2SN, SAE 100 R2S-AT, ISO 1436 Standard: EN 857 1SC, ISO 11237-1 Standard: EN 857 2SC, SAE 100 R16S, ISO 11237-1   Working Temperature : 400C to + 1000C(continuos) Intermittent Temperature : 400C to + 1200C(10% of total working hours) For air application (Temp.max 700C) & pressure above 17 bar cover must be pin pricked. Special MSHA approved flame resistant outer cover can be provided on request. Standard: EN 856 R12, ISO 3862-1 R12, SAE 100 R12   Working Temperature : 400C to + 1210C(continuos) Intermittent Temperature : 400C to + 1250C(10% of total working hours) Note : 1MPa = 10 bar = 145 psi Standard: PIX proprietary. Exceeds pressure rating of EN 857 1sc Standard: PIX proprietary. Exceeds pressure rating of EN 857 2sc   Working Temperature : 400C to + 1000C(continuos) Intermittent Temperature : 400C to + 1200C(10% of total working hours) For air application (Temp.max 700C) & pressure above 17 bar cover must be pin pricked. Special MSHA approved flame resistant outer cover can be provided on request. Standard: PIX proprietary. Exceeds pressure rating of EN 853 2SN   Working Temperature : 400C to + 1000C(continuos) Intermittent Temperature : 400C to + 1200C(10% of total working hours) Special MSHA approved flame resistant outer cover can be provided on request.

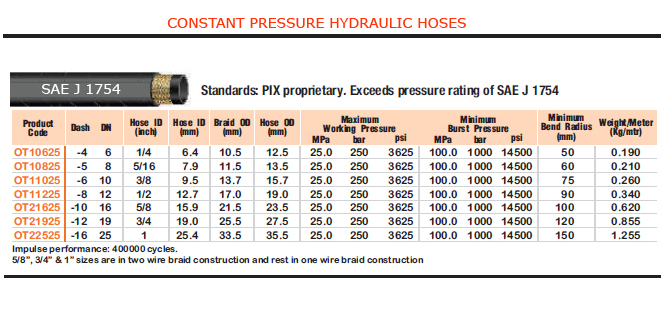

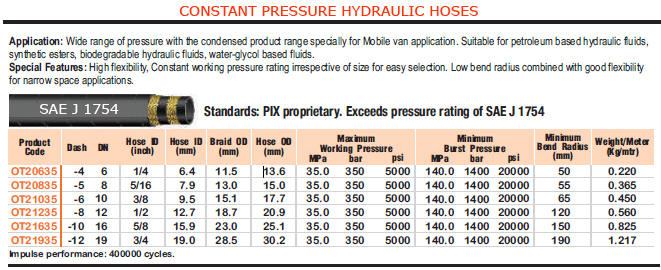

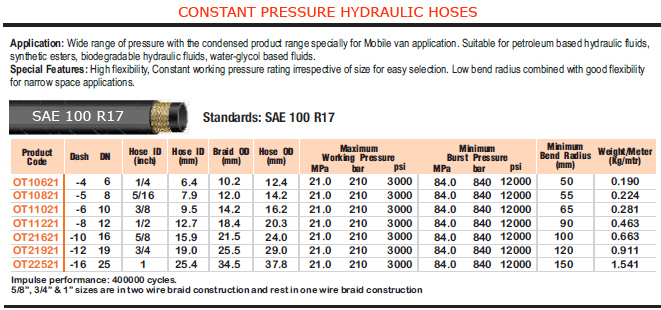

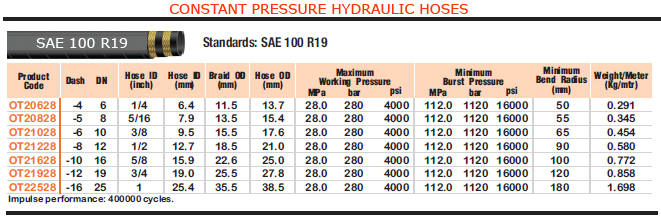

CONSTANT PRESSURE HYDRAULIC HOSES   Standard: SAE 100 R17 Standard: PIX proprietary. Exceeds pressure rating of SAE J 1754 Standard: SAE 100 R19 Standard: PIX proprietary. Exceeds pressure rating of SAE J 1754   Working Temperature : 400C to + 1000C(continuos) Intermittent Temperature : 400C to + 1200C(10% of total working hours) For air application (Temp.max 700C) & pressure above 17 bar cover must be pin pricked. Special MSHA approved flame resistant outer cover can be provided on request.
